Construction Material PU Polyurethane Sandwich Wall Panel for Wall Siding

Name: Construction Material PU Polyurethane Sandwich Wall Panel for Wall Siding
Brand: HENGRUIYANG
Price: 1 USD

Wholesale Construction Material PU Polyurethane Sandwich Wall Panel for Wall Siding from china suppliers

Brand Name : HENGRUIYANG

Model Number : OEM ODM

Certification : CE , ISO9001, TUV, SGS

Place of Origin : Jiangsu, China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10set

Delivery Time : 40-60 days

Packaging Details : Standard export packing with each machine tied and protected in container

Panel Thickness : 10mm - 20 mm

Panel Length : To the request of the customer

Panel Width : 415 mm

Panel Weight : 3.7 Kg/m2

Contact Now

Technic Specifications

Core Material	PU (Polyurethane Foam)
Foam Density	45-60 kg/m3
Surface Material	PPGI (Pre-painted Galvanized Steel)
Surface Steel Skin Thickness	0.3 mm - 0.5 mm
Bottom Layer Material	Aluminum Foil
Application	Wall Siding, Roofing, Ceiling House, Villa, Office, School, Showroom, Warehouse, Prefab House, etc

Application:

PU Sandwich panel (Polyurethane sandwiched panel )is composed of 2 layers of weather-proof colored steel sheets and jetted the hard forms of polyurethane between 2 layers which feature fireproof materials. It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.

Dimensions and Weights:

	Exterior Wall Panel	Interior Wall Panel
Panel Thickness	16 mm / 20 mm	10 mm
Panel Length	To the request of the customer	To the request of the customer
Panel Width	415 mm	466 mm
Coverage Width	380 mm	450 mm
Standard Panel Dimension (mm)	3800×415×16 (L×W×T)	3800×466×10 (L×W×T)
Panel Weight	3.7 Kg/m2

Construction Material PU Polyurethane Sandwich Wall Panel for Wall Siding

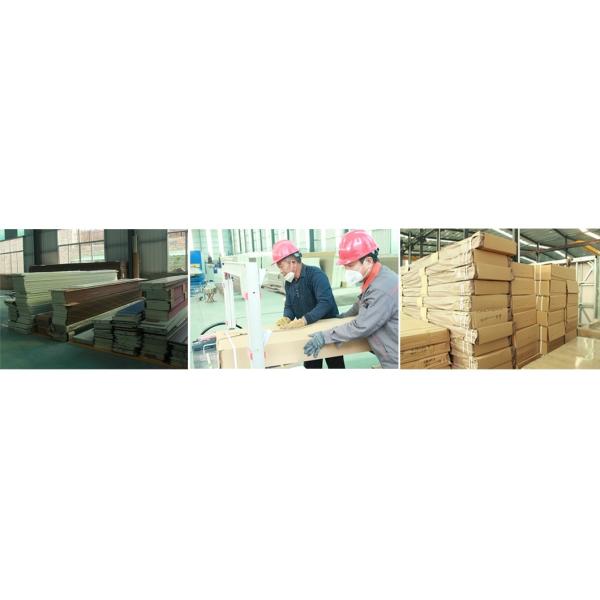

Packaging and Delivery

1200 sqm for a 20ft container.
